Description

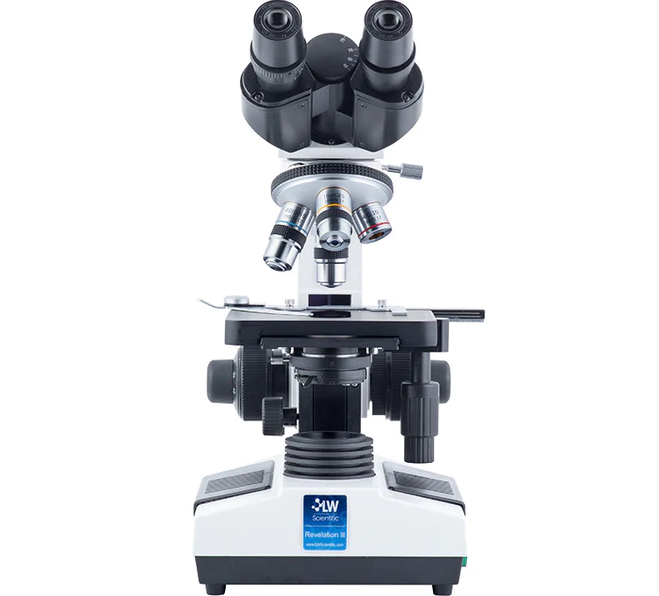

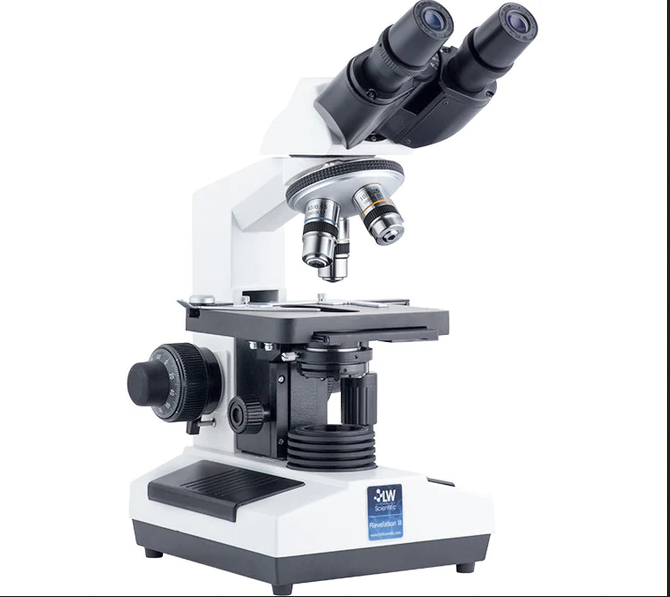

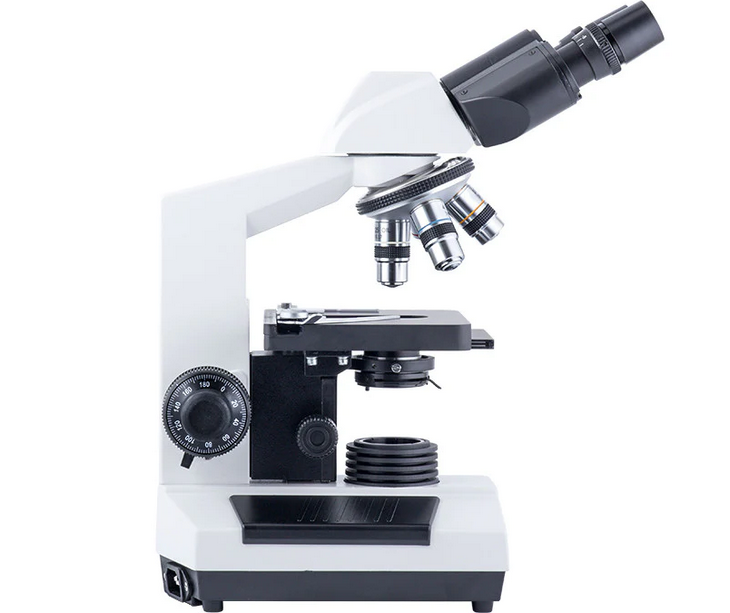

The Revelation III is a best-seller into physician and veterinarian clinics, as well as universities and medical schools. The Revelation lll comes with LED illumination, for daylight color, low heat, low power consumption, and super-long bulb life (30,000). Equipped for performance, its features include DIN achromatic or DIN Plan optics and a 30-year anti-fungal coating. The Revelation III is the choice for superior performance at a great value!

Features

1. Head

• Binocular (Seidentopf)Inclined 30°, rotates 360°
• Diopter adjustment
• 10X/18 wide field eyepieces (10X/20HP available)

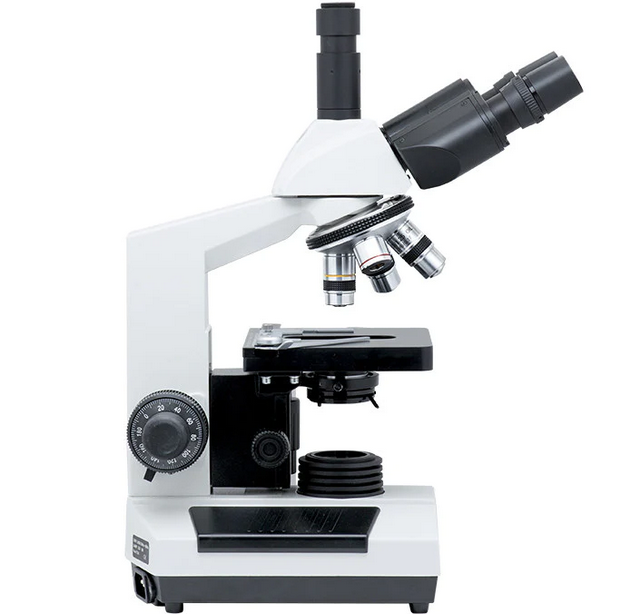

• Monocular, trinocular, dual binocular and 45° sliding heads available
• Interpupillary distance range: Binoc head: 48-75mm Trinoc head: 55-75mm

2. Nose piece

• Quadruple forward-facing nosepiece
• Multiple ball bearing mounted

3. Objectives

• DIN Achromatic or DIN Plan
• 30 year anti-fungal coating
• 4X, 10X, 40X, 100XR (oil)
• Parfocal, parcentric, color-coded

4. Stage

• Mechanical stage (140mm x 130mm)
• Coaxial drive controls
• Range of traverse is 78mm x 50mm
• Stage locking lever
• Slow-close hydraulic slide finge

5. Focus

• Coarse adjustment: range of 30mm
• Fine adjustment: graduation of 2μm
• Tension control knob

6. Illunination

• Moveable Abbe condenser, NA 1.25, rack & pinion
• Iris diaphragm
• 100-240V AC / 50-60Hz Auto-Switching Input
• Light Options:Variable LED light source (3W bulb)

7. Weight & Dims

• Height: 15” (380mm)
• Length: 9” (230mm)
• Width: 7” (178mm)
• Weight: 14 lbs. (6.4kg)
